NEW ZYXEL VMG8924-B10D

114.00
In Stock
Request Info
NEW ZYXEL VMG8924-B10DDownload the Data Sheet

The Zyxel VMG8924-B Series of Dual-Band Wireless AC/N VDSL2 Combo WAN
Gigabit IAD provides high-speed VDSL Internet access to meet the worldwide
market requirements for triple-play services. Featuring the built-in 3x3
802.11ac WLAN that relieves to those troublesome wirings, the VMG8924-B
Series brings extremely great Wi-Fi user experience and coverage. Moreover,
its user-oriented design also allows it to provide powerful functions while it
comfortably meets the style of every customer.

G.vector to optimize performance and CAPEX

The Zyxel VMG8924-B Series of Dual-Band Wireless AC/N VDSL2 Combo
WAN Gigabit IAD features Vectoring technology to eliminate cross-talk or
interference among different VDSL lines. With the mechanism, Vectoring
significantly increases the bit rates to compete with cable/fiber technology
as well as to enlarge the service coverage without changing the current
infrastructure a way to save cost significantly comparing to Fiber-To-
The-Home (FTTH) deployments. In the mean time, the CAPEX can also be
optimized by the improved data rates and coverage without upgrading the
existing equipment.

Quality of Service (QoS) support

With the QoS features from Zyxel VMG8924-B Series,
service providers can freely design their QoS policies
and prioritize mission-critical services such as IPTV and
VoIP based on their service plan offerings. This increases
network efficiency and productivity that enable service
providers to offer a real multi-play solution that meets the
needs of residential users.

System Specifications

Wireless

IEEE 802.11ac 5 GHz with up to
1.3 Gbps data rate
IEEE 802.11n 2.4 GHz with up to
300 Mbps data rate
Wireless Protected Setup (WPS)
WEP data encryption (64/128 bit)
WPA/WPA2, WPA-PSK/WPA2-PSK
Wi-Fi scheduling
Multiple SSID (up to 4)

VDSL and ADSL Compliance
VDSL/ADSL2+ compliance
VDSL2 (G.993.2), band plan Annex A,
Annex B (over ISDN)
Support profile 8a, 8b, 8c, 8d, 17a
VDSL1 (G.993.1)
ADSL2+ (G.992.5) support Annex
A, I, M
ADSL2 (G.992.3) support Annex
A, I, L, M
ADSL (G.992.1) Annex A
ANSI T1.413 issue 2
G.INP (G.998.4)
G.vector (G.993.5)

VLAN/QoS
Support flexible traffic classification
6-bit DiffServ Code Point
(DSCP, RFC 2474)
802.1P 3-bit Class of Service (CoS)
802.1Q 12-bit VLAN ID
Router/Bridge Features
IEEE 802.1d transparent bridge
PPP over Ethernet (RFC 2516)
MAC encapsulation routing/IPoE
Network Address Translation (NAT)/
Network Address Port Translation
(NAPT)
NAT server (Port forwarding)
DHCP client/server/relay
DNS proxy/dynamic DNS
Static route/policy routing
IGMP v1, v2, v3
IP protocol v6 (IPv6)

Voice Functionality (VoIP)
SIP v2 (RFC 3261)/SDP (RFC2327/3264)
RTP/RTCP (RFC1890)
Codec: G.711, G.726, G.722
G.168 echo cancellation
Voice Activity Detection (VAD)/
Comfortable Noise Generator (CNG)
Dynamic jitter buffer
Dual Tone Multi Frequency (DTMF)
CLIP/CLIR

Phone Features (VoIP)
Caller ID (FSK.DTMF)
Call forwarding (No condition, Busy,
No answer)
Call transferring (Attended,
Unattended)
Three way conference
Abbreviated dialing (Speed dial)
Interactive Voice Response (IVR)
Flash hook timer
Message waiting indicator (RFC 3842)
T.38 fax relay
Transparent fax rely over G.711

Security
Firewall
Generic packet filter
DoS attack prevention
Parental control

USB
File sharing
3G backup

Management
Web GUI (HTTP/HTTPS)
Command Line Interface (CLI)
Firmware upgrade via HTTP/FTP/
TR-069
DSL forum TR-069/TR-098/TR-111/
TR-064
802.1ag Connectivity Fault
Management (CFM)

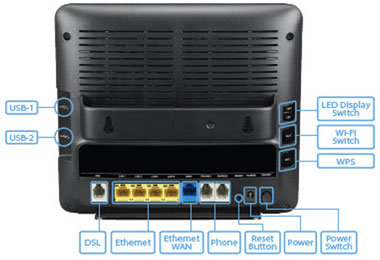

Hardware Specifications
WAN:
VMG8924-B10D: One RJ-11
interface for VDSL (over POTS)
VMG8924-B30D: One RJ-45
interface for VDSL (over ISDN)
One RJ-45 connector for
Giga-Ethernet WAN port
LAN: Four 10/100/1000M Auto MDI/
MDI-X RJ-45 ports

Wireless:
Two internal antennas (2.4 GHz)
Three internal antennas (5 GHz)

Power jack
Power on/off switch
Reset button
WPS on/off switch button
WLAN on/off switch button
Two FXS ports
One USB 2.0 host port
Status LEDs indicators: PWR/SYS,
DSL, INTERNET, WAN, ETHERNET,
WLAN, WPS, Phone1, Phone2, USB
Power consumption: Comply with EU
CoC 5.0

Physical Specifications
Item dimensions (WxDxH):
214 x 155 x 32 mm
(8.43" x 6.10" x 1.26")
Item weight: 340 g (0.75 lb.)
Packing dimensions (WxDxH):
425 x 340 x 266 mm
(16.73" x 13.39" x 10.47")
Packing weight: 742 g (1.64 lb.)

Environmental Specifications
Operating Environment
Temperature:
0C to 40C (32F to 104F)
Humidity:
10% to 90% RH (Non-condensing)
Storage Environment
Temperature:
-30C to 70C (-22F to 158F)
Humidity:
10% to 95% RH (Non-condensing)

Certification
CE

Package Contents
Wireless router
Power adapter
Ethernet cable
Phone cable
Quick start guide
